Designs are dependent on project specifications and applications. As these are non-structural members, they are designed to withstand dead and wind loads. We offer the option of using prestressed slabs to improve feasibility. Furthermore the addition of Steel Y-angles on top of the columns allow for the addition of barb wires for extra security. We also offer customised patterned slabs based on the customers’ requirements.

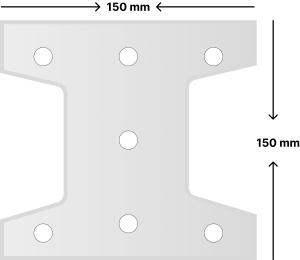

• Standard Column Dimensions: 150mm x 150mm and height will be vary as per client’s requirement. 7 bars of 3mm dia. HT steel is used as a reinforcement.

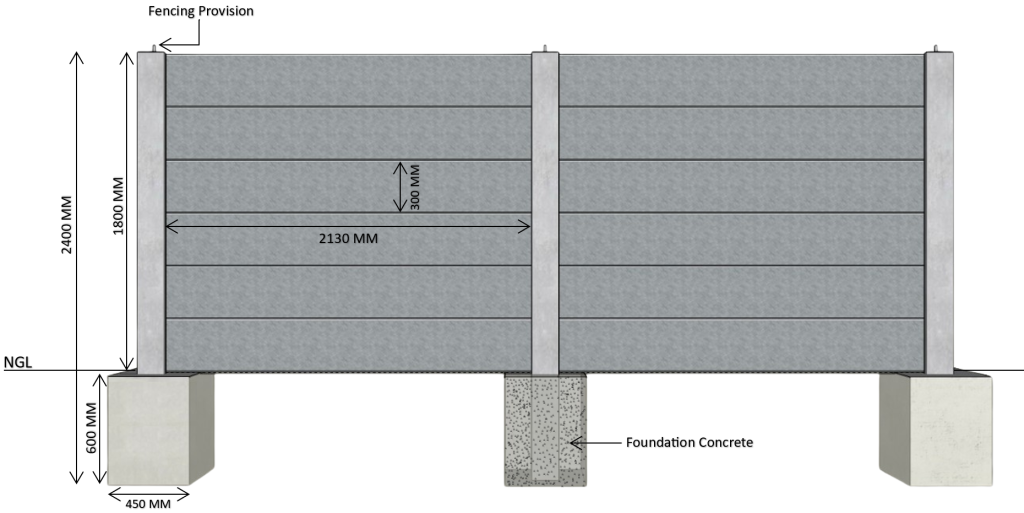

• Standard Panel dimensions: 2130mm x 300mm x 50mm with 3 mm dia. HT steel is used as reinforcement.

Pacific Compound Walls are cast using concrete with a low w/c ratio, it is poured into steel mechanized equipment called precast molds. Rebar is preplaced and secured inside the mould. Form vibrators are used to consolidate concrete to attain homogeneity and release any trapped air. This precast technique is called as Horizontal Casting System. The product is then stripped and the mould is made ready for doing next casting cycle.

At every stage meticulous testing is done to maintain quality. Every concrete batch undergoes cube testing to ensure strength parameters are met along with slump testing to ensure consistence in the mix design. After demoulding the product goes through visual inspection to ensure no honey-combing, voids or cracks are present. In case any test fails the batch will be rejected.
