Designs are dependent on project specifications and applications. As these are non-structural members, they are designed to withstand dead and wind loads. We offer the option of using prestressed slabs to improve feasibility. Furthermore the addition of Steel Y-angles on top of the columns allow for the addition of barb wires for extra security. We also offer customised patterned slabs based on the customers’ requirements.

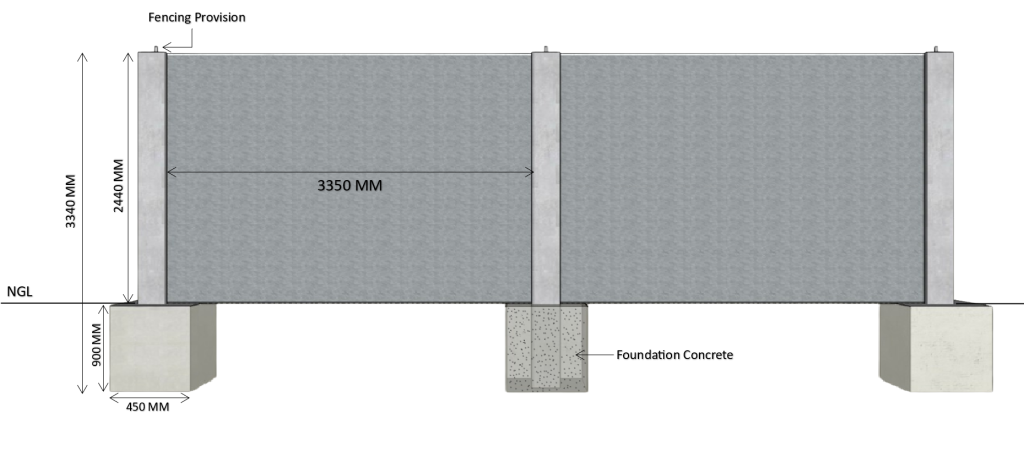

• Standard Column dimensions: 230mm X 230mm
• Standard Panel dimensions: 3350mm Length X 2440mm Height X 75mm thk.

Pacific Compound Walls are cast using concrete with a low w/c ratio; it is poured into steel mechanized equipment called precast molds. Rebar is preplaced and secured inside the mould. Form vibrators are used to consolidate concrete to attain homogeneity and release any trapped air. The product is then stripped and the mould is reused. FRP sheets are used along with the mould to create customised patterns based on the customers’ requirements.

At every stage meticulous testing is done to maintain quality. Every concrete batch undergoes cube testing to ensure strength parameters are met along with slump testing to ensure consistence in the mix design. After demoulding the product goes through visual inspection to ensure no honey-combing, voids or cracks are present. In case any test fails the batch will be rejected.
